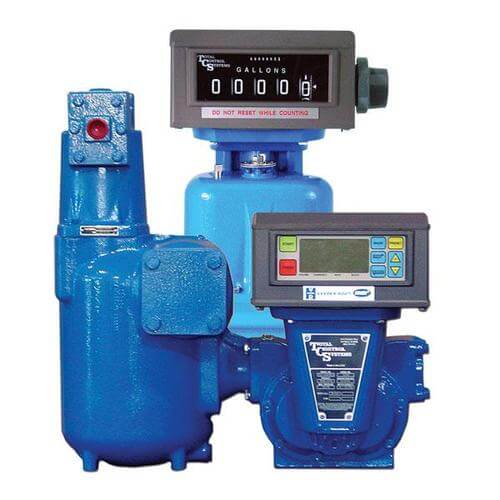

TCS Meter Register Range

This rugged, precise mechanical meter register is designed for all kinds of liquid inventory and delivery operations. This register totalises and displays high-speed deliveries and transactions in large, easy-to-read figures. It features a highly visible display, bullet proof construction, and accurate readings up to 99,999,999 units.

  • 7887 Register

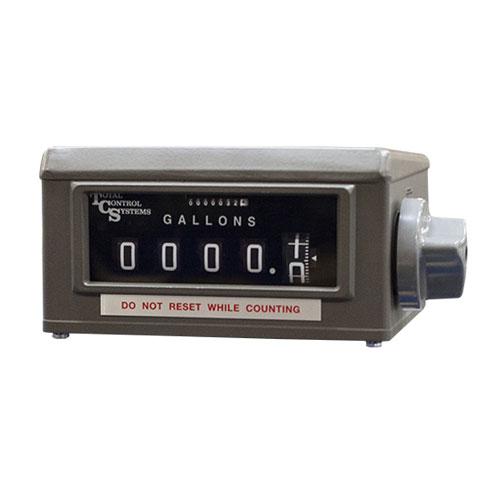

The 7887 Meter Register totalises and displays high speed deliveries and transactions in large easy-to-read figures. Displays a 5 digit resettable totaliser and 8 digit non-resettable totaliser. Optional 6 digit resettable totaliser and 8 digit non-resettable totaliser available with the 7886 Meter Register.

The Veeder-Root 7887 Meter Register is the outstanding choice for recording and displaying delivery data in a wide variety of industries. In the petroleum refining and distribution field, it is used from the well to pipelines and storage centres, then to gasoline and fuel oil delivery trucks. In the chemical processing field, it can be used for displaying totals during mixing and batching operations.

Ideal for increased efficiency in all kinds of liquid inventory and delivery operations. Utilising a geared drive available in a wide selection of ratios, the Meter Register records in practically any unit of liquid measure - gallons, litres, barrels, etc. - as well as non-liquid units.

Special optional adaptors are available to mate the Meter Register with all standard meters and pumps. It also easily combines with Veeder-Root Meter Preset and Printer to form a complete count, control and print system.

Finished in corrosion resistant epoxy, the sturdy housing protects the Meter Register in demanding environments and extremes in weather.

  • 7888 Ticket Printer

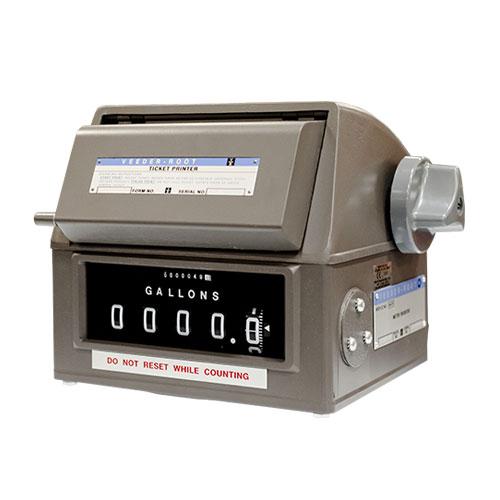

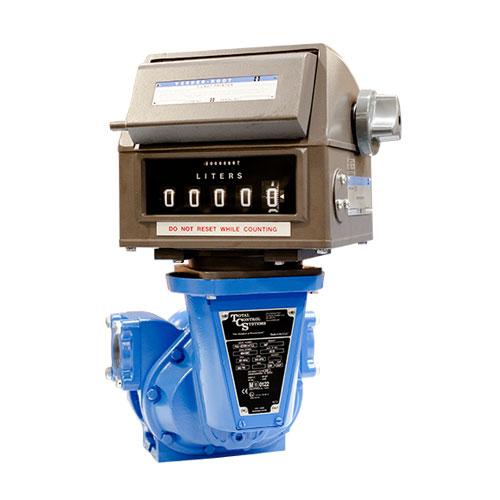

Meter Register and Ticket Printer combine to produce clean, detailed printed records of high-speed fluid deliveries and transactions.

Two models are available: Accumulative and Zero Start. The Accumulative Printer, before delivery, prints the total remaining from the previous delivery. After delivery, the total accumulated at that point is printed. The amount just delivered is found by subtracting the previous total from the accumulated total. Zero start models first print zeros. The total printed after delivery is the actual amount of the transaction.

  • 7889 Preset Counter

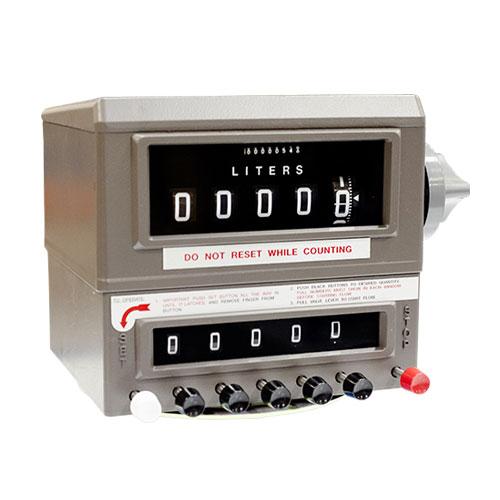

The Meter Register and Preset Counter provide automatic preset batch control. The control function will shut-off (2-stage) when predetermined quantity is delivered.

The rugged two-stage preset quantity control for high speed volume deliveries. Counts down from a preset quantity. First stage knockoff slows delivery before the second stage shuts off the delivery system at zero. The first stage (or slowdown) knockoff can be field adjusted to calculate 3 to 9, or from 10 to 90 in increments of 10.

Preset number can be easily set with one hand. Stop button provides immediate positive control of shutoff, for emergency shutdown. Interlocks block system until pump valve is opened. Mechanical knockoff is standard, electrical knockoff optional. Available in 4 or 5 figures. The 7887 register counter is required for operation.

  • Microswitch Cutoff

The Micro Switch assembly has two double chamber internal switches to provide Full Flow, Low Flow and Off Control for the 7889 preset counters.

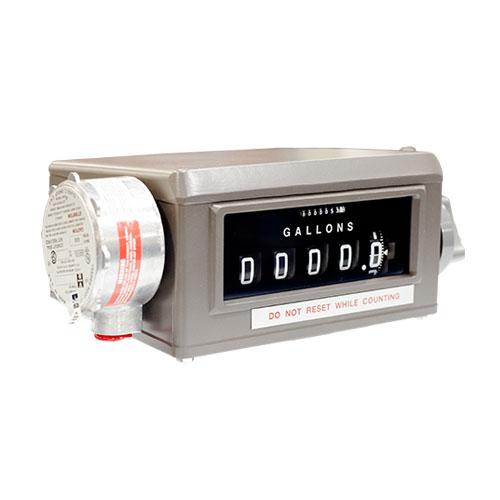

The Electronic Knock-Off Switch Kit consists of a 7856 Explosion Proof Switch assembly and mounting components. The kit is available with or without handle. The switch assembly has 4 switches (Single Pole Double Throw) providing full flow, low flow or off control. The switch assembly can be rear, right or left side mounted. The switch assemblies are UL & CSA or EEx approved.

  • Pulse Transmitters

The dry reed (1:1 or 10:1) and solid state (100:1) pulse transmitters provide fast and accurate signalling for remote indication, totalising and data monitoring systems. The 1871, 7697 and 7671 pulse transmitters accurately pulses electronic signals from a Veeder Root meter register to a remote display or a data system.

The 1871 and 7697 pulse transmitter switches a fixed level input voltage to form a square wave pulse with minimum contact bounce for use with transistorised circuits. The transmitters utilises a dry-reed switch, magnet and gear train, synchronised to provide 1 ppr or 10 ppr.

The 7671 pulse transmitter directly controls an electronic current with a magnetic field, eliminating moving contacts. Two magnetically sensitive digital integrated circuits and two revolving magnetic disks with supporting hardware generate a pulse train. This pulser provides a single (100 ppr) or dual channel (50 ppr).

  • Swivels

The swivel adapter allows the register to be rotated to any desired angle before delivery or while meter is operating. Accuracy of registration is not affected. Reduces cost and saves space on loading racks where trucks are filled from either side. Also available to be used with preset counter.

  • Tray Switch

Tray switch prevents a pump or valve from turning on until the register counter has been reset. Also used for resetting external digital displays after a transaction is finalised.

The Interlock Tray Swith with associated circuitry prevents a pump or valve from turning on until the reset operation is complete, and it protects the meter register from clutch damage caused by improper resetting during product transfer. Also used for resetting external digital displays to zero after a transaction is finalised, when used with the optional pulse transmitter.

The specially designed reset switch and cam assembly causes the switch contact to change whenever an operator attempts to reset the register. Only after a proper reset is complete, can the system be activated again and the delivery be resumed.



2. ELECTRONIC REGISTRATION



Enhance your meter system through Electronic Registration to provide increased accuracy, security and productivity. Electronic registration provides a resettable and totalizer display, preset valve control, temperature volume compensation, ticket printing and electronic communication. Other options available are point-of-sale (POS), data capture, auto-batch, data management, route control, GPS and much more.

2.1  Automation & Controls

    Total Control Systems offers all the components to mechanically and electrically connect your liquid handling systems together and control the operation from one convenient, easy to use panel. Utilizing the latest digital electronic preset controls, touch screen or PLC driven technology, we can custom design and build control panels to your specific requirements.

    Single or multiple product presets are available from stock or we can design a panel to control multiple operations such as manufacturing plants, loadouts, injection systems, or mini-bulk filling. Our menu driven software programs do not require prior computer experience.

    Designed and manufactured control panels are UL 508A approved.



    2.2  3rd Party Electronic Registration

      Total Control Systems have preferred partners from around the globe to offer electronic registration for your fluid measurement requirements. Contact your local representative for information and pricing.

      2.2.1  E:Count

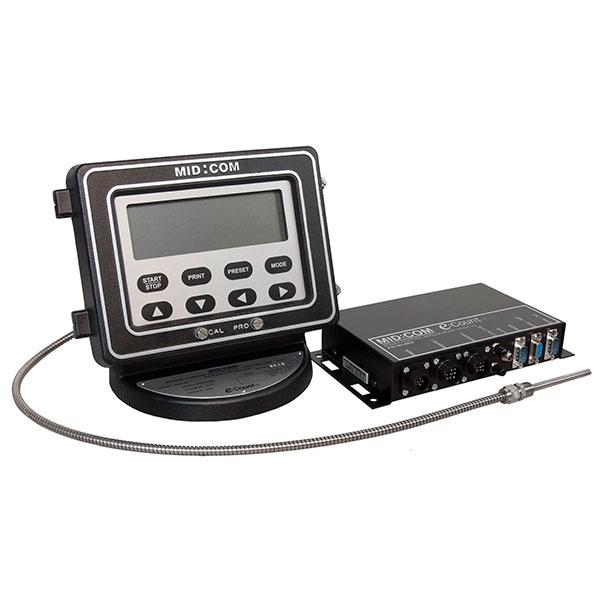

      E:Count is a standalone register for petroleum and propane bobtails. E:Count will improve the accuracy and efficiency of any mechanical meter by replacing hundreds of moving parts with a very low maintenance, solid state electronic counter.

      Features:

      • Easy mounting and use on any brand or type of meter.
      • Large easy to read alpha numeric display.
      • Easy to follow legends for all operations.
      • Self contained calibration and setup functions.
      • Accepts any type of pulse input.
      • Built in Enduro Switch® control keys (for harsh environments).
      • Sealed connectors including power, valve control and remote readout.
      • Field programmable for custom applications.
      • Eliminate change gears, adjusters, linkages and other mechanical parts.

            2.2.2  EMR3

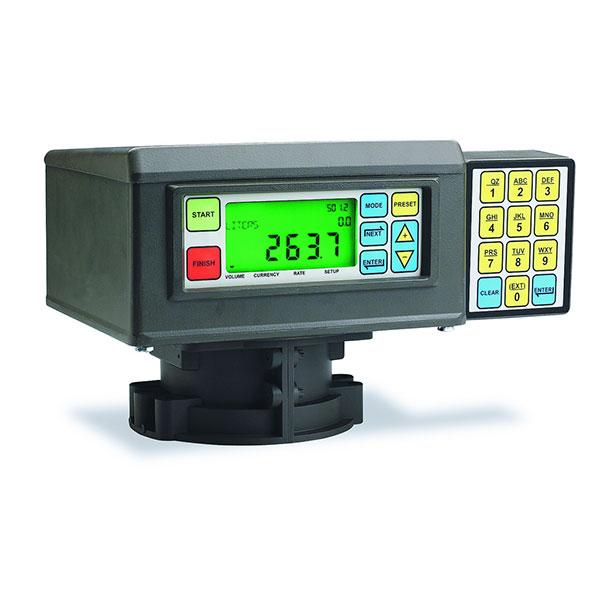

            State-of-the-art precision counting for liquid inventory and delivery operations. Offers superior functionality with a host of electronically enabled features.

            Features:

            • Delivery, totaliser and preset all in one versatile display.
            • Nonvolatile memory continuously stores the last 200 transactions made.
            • All-weather backlit display for durability.

              Benefits:

              • Flexibility – fully customisable delivery tickets.
              • Rugged membrane-type programming keys for durability.
              • Accurate temperature compensated delivery.
              • Currency & volume delivery modes.
              • Currency & volume preset deliveries.
              • Multiple language capability.
              • Multiple product deliveries.
              • Customisable text labels.
              • Dual register head capability - simultaneous operation.
              • Shift report printing.
              • Multi-point calibration for exceptional accuracy.
              • Fully functional remote register display (permits remote operation).
              • De-fuel and de-fuelling presets.
              • 15 tier price/tax/discount (percentage, flat rate, and surcharge).
              • Remote emergency Start-Stop interface for each head.
              • I.B.Net – Interface up to 32 register heads in one network.
              • User defined pulse output (connect with other inventory systems).

                Spec:

                    • 3 I/O Com Ports (RS 232/485)
                    • UL, ATEX and IECEx Approved
                    • Weights and Measures World-Wide Approval: OIML, CW&M, French, NCWM (NIST Standards)
