PETRO S-CUBE – Self Bunded, Double Wall - Baffled Tank

At a Glance

  • Self Bunded Tank design.
  • S 355 JR material Internal/ External  Tank and Wetted Parts.
  • Also available in a 304 Stainless steel inner tank as optional.
  • 5 mm Inner tank / 5 mm Outer tank.
  • Pumps / connections / hoses / meters / filters housed in bund, which can be locked even when in use!
  • Design and Fabricated in accordance to AS1940 / AS1692 approved as self bunded tank for static storage
  • Design and Fabricated in accordance to SANS 10131.
  • Self bunded tank capacity 110% of internal tank volume
  • Easily removable carbon steel inner tank for maintenance and cleaning
  • The PETRO S - CUBE self bunded tank is suitable for storage of a variety of product.
  • Our PB range offers a fully enclosed lockable pump bay extension to the unit.

Details

  • PETRO Self Bunded Cubes are fabricated from high grade S 355 JR steel c/w  a 5mm inner tank wall thickness and 5 mm outer tank wall thickness. An inner tank contains the initial volume of liquid. In the unlikely event that this tank develops a leak the outer tank will prevent the liquid from escaping into the environment.
  • The self bunded tank has a capacity of 110% of volume. All seams are welded to regulated standards.
  • PETRO S Cube self bunded tank is designed with an easy removable inner tank for maintenance and inspection.
  • PETRO S Cube self bunded tanks are available in a range of capacities, ideal for static or relocatable by either truck or shipping container and suit most hydrocarbons storage requirements.
  • The ultimate in quality at very affordable prices.
  • 8000 L and above models are supplied with Overfill Protection Valve / Anti Syphon Valve and Overfill Alarm Unit.

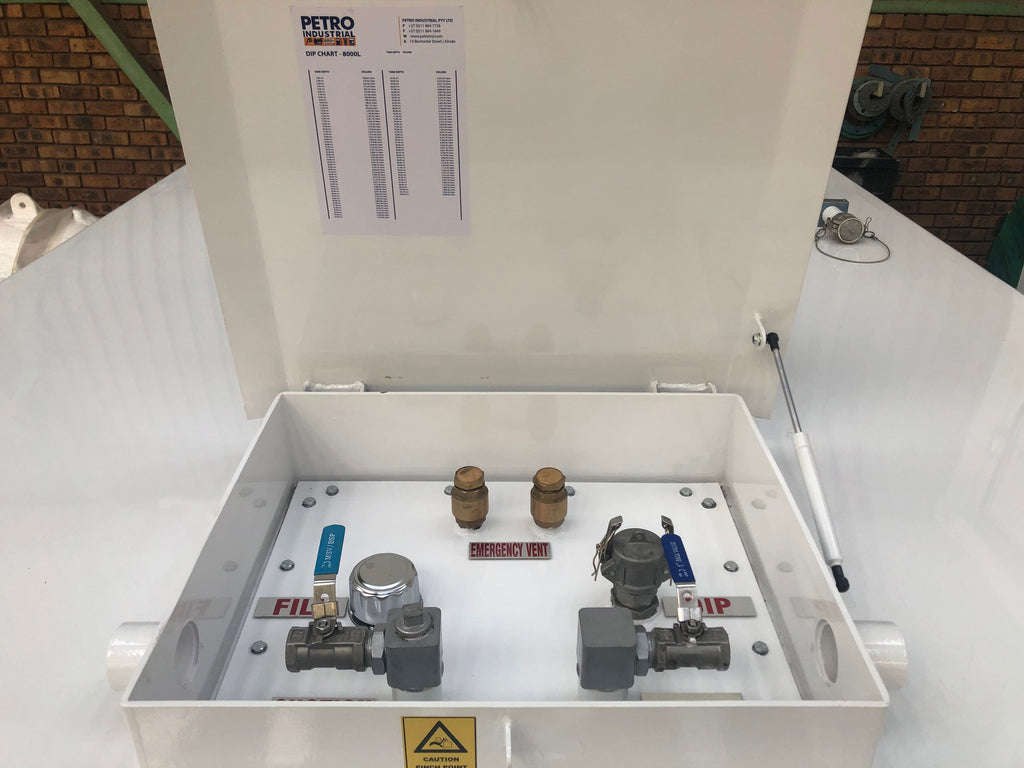

Standard fixtures and accessories:

  • High level alarm
  • Fuel Suction line c/w isolation control with anti-syphon foot valve
  • Fuel Return Line c/w isolation control
  • Filler breather port
  • Vent with emergency vent.
  • Bund dip
  • Safety decals
  • Colour is AS2700 "Colour Standards for General Purposes" N14 White

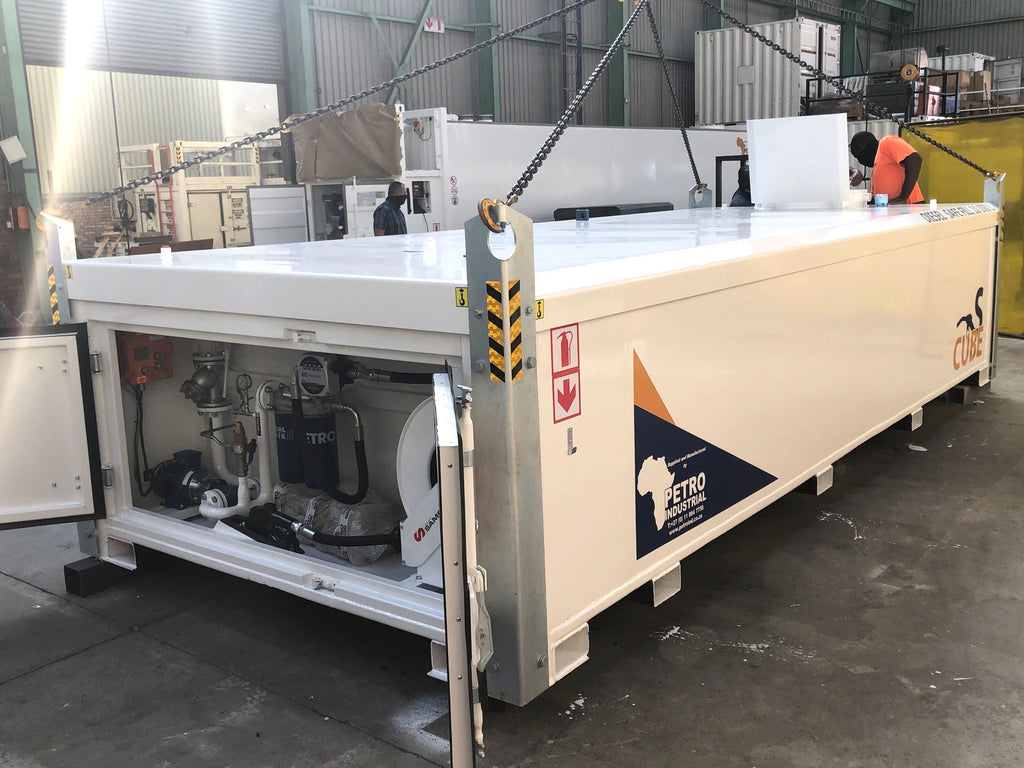

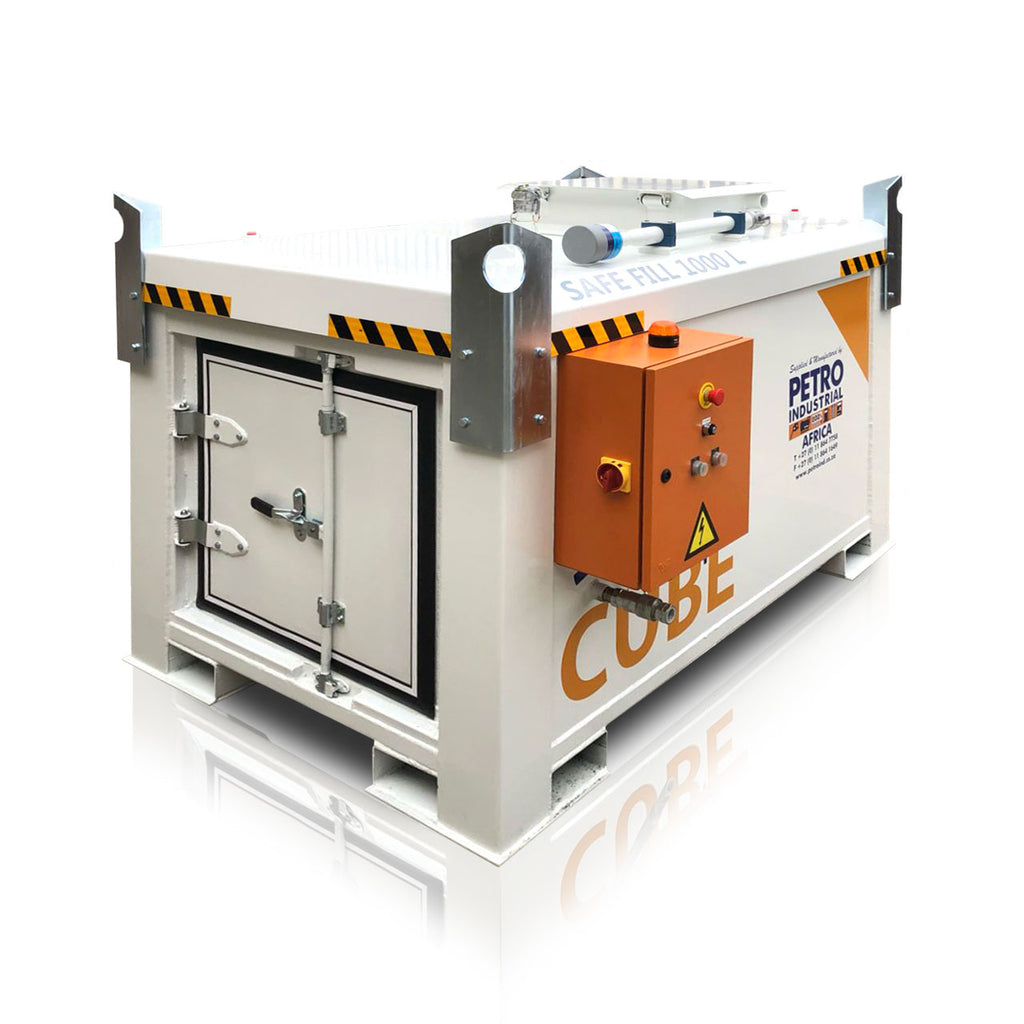

  • Optional: Fully enclosed pump bay cabinet for all pumps, connections, nozzle and hoses to be locked within the bunded area.

PRODUCT RANGE:

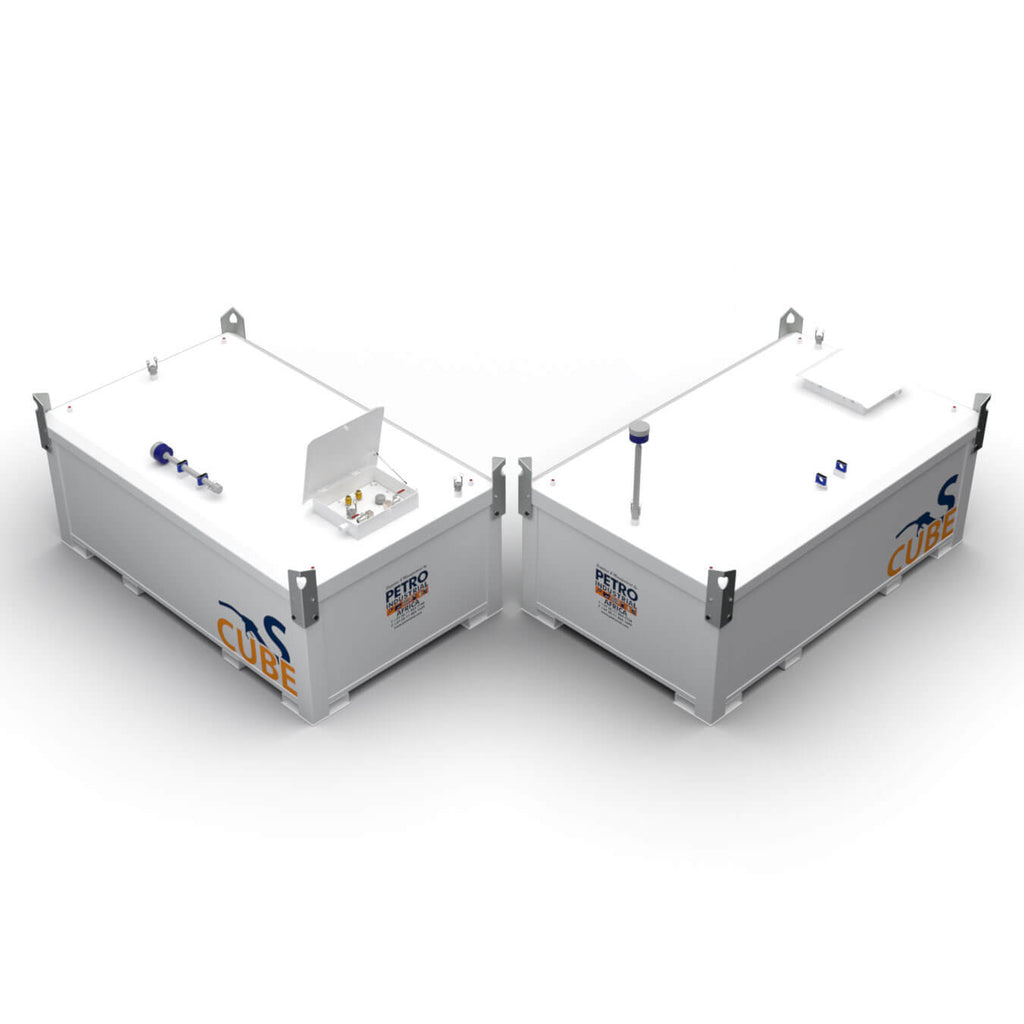

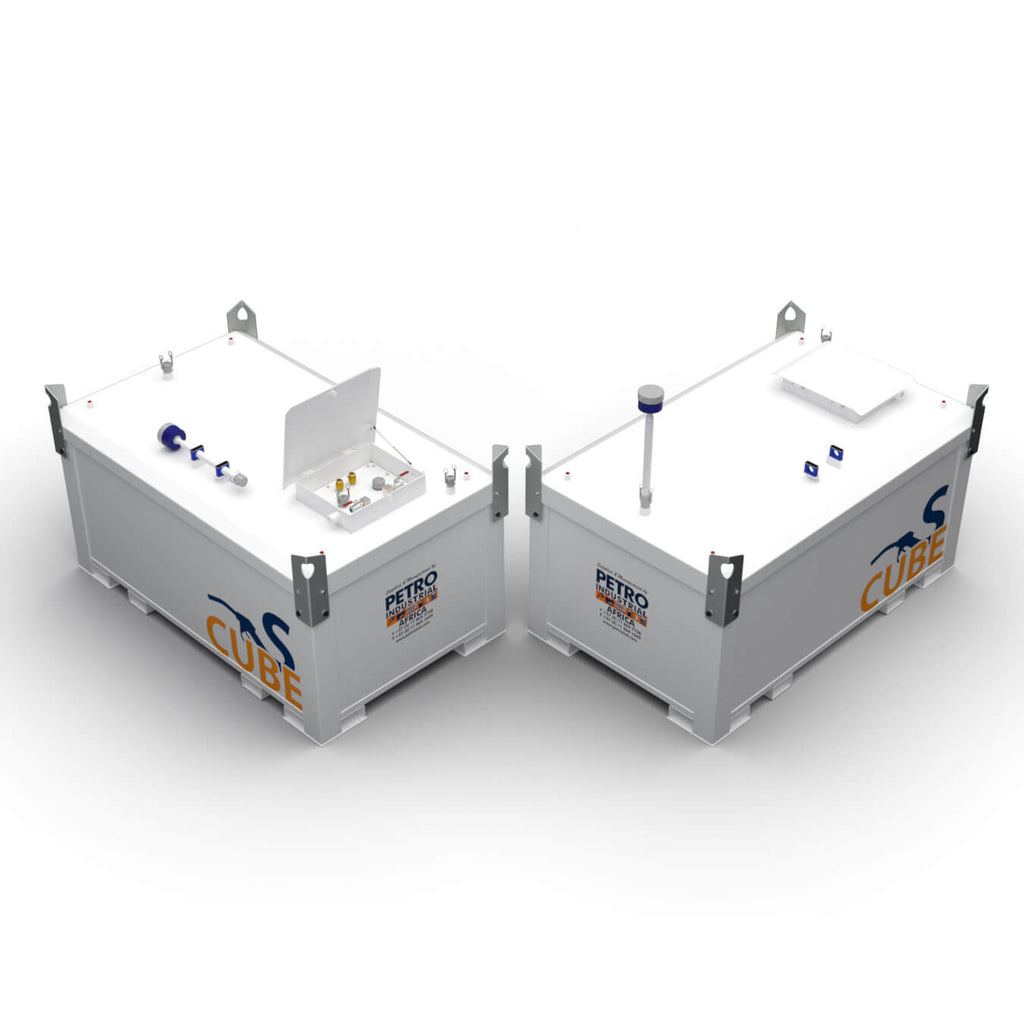

S-Cube Tank Overhaul Dimensions

Code

Safe Fill Level (L)

Dimensions (L x W x H) (mm)

Estimated Weight (kg)

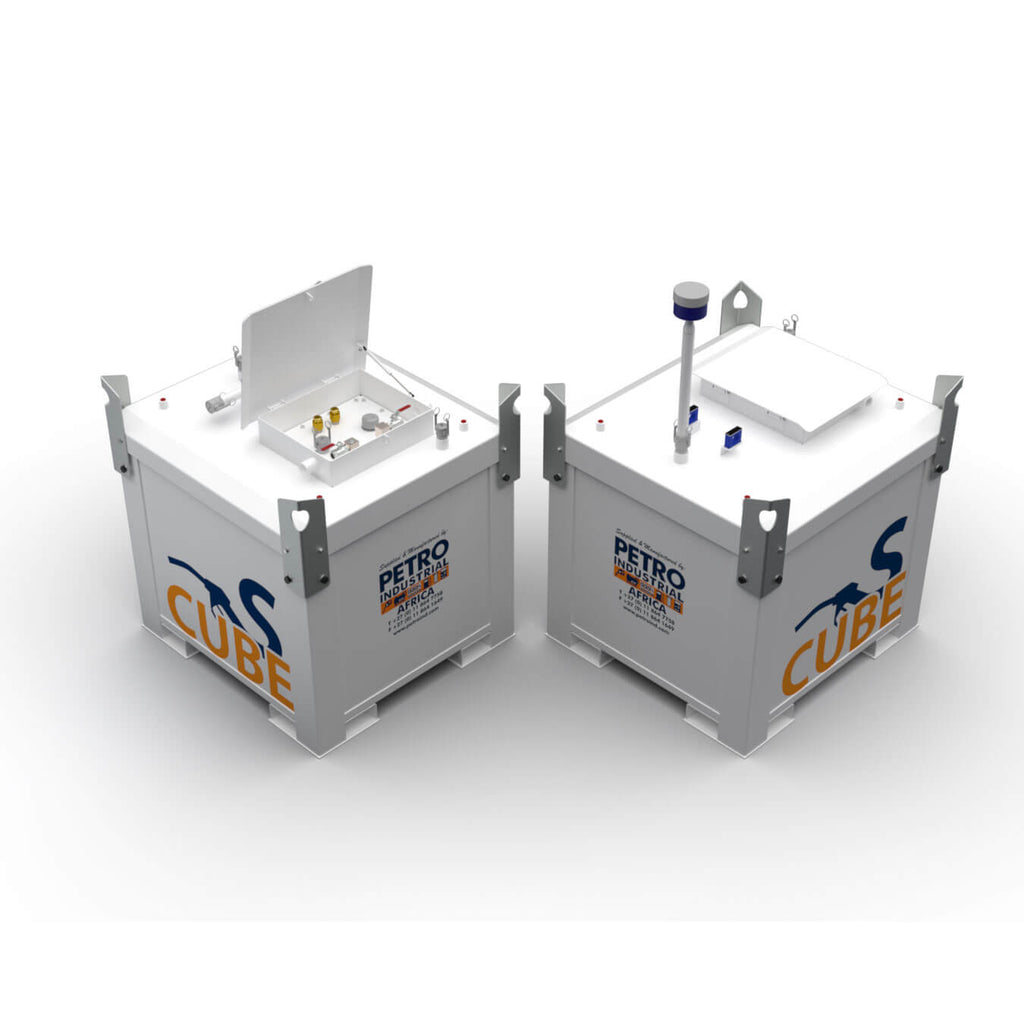

S-Cube 1

1000

1380  x 1280  x 1236

1086,97

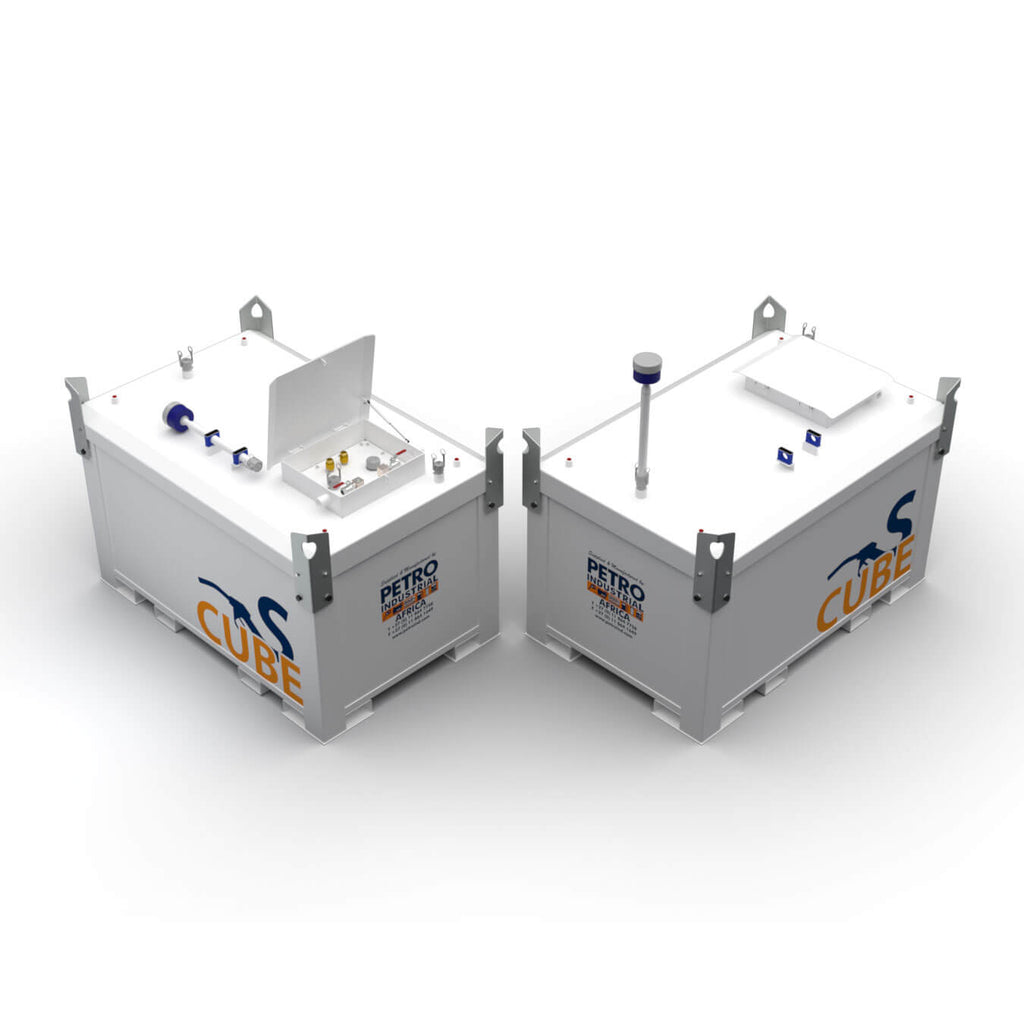

S-Cube 2

2000

2140 x 1380 x 1236

1448,55

S-Cube 3

3000

2580 x 1580 x 1236

1817,57

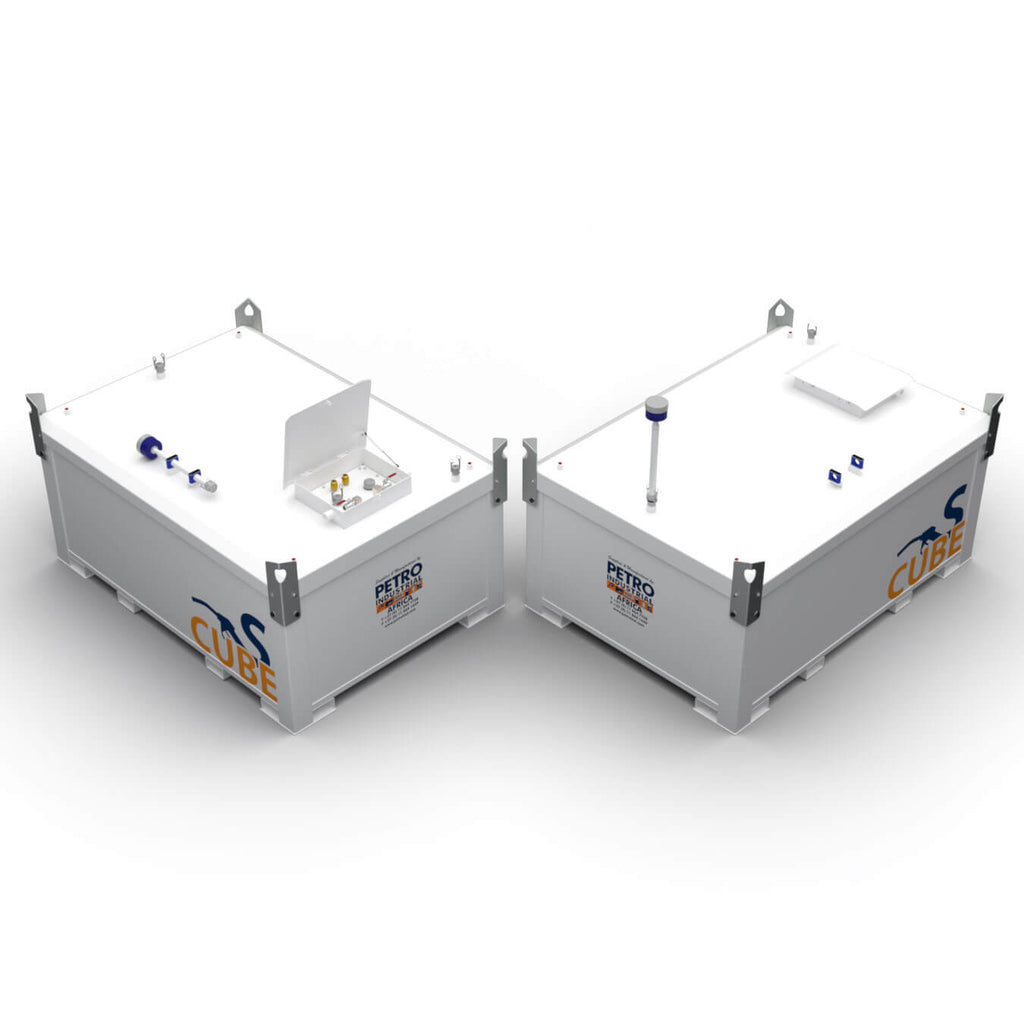

S-Cube 4

4000

2800 x 1980 x 1236

2282,68

S-Cube 5

5000

3280 x 1980 x 1236

2621,33

S-Cube 6

6000

3790 x 2080 x 1236

2948,94

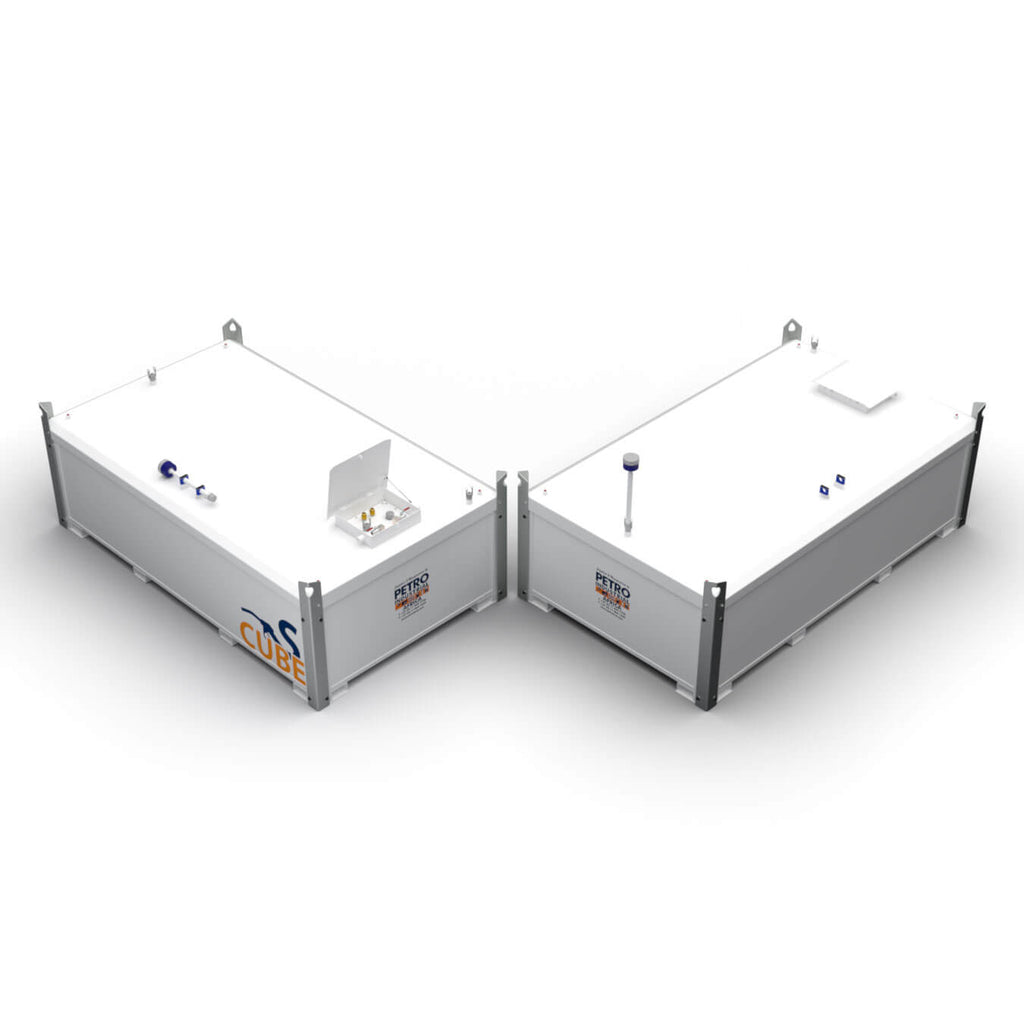

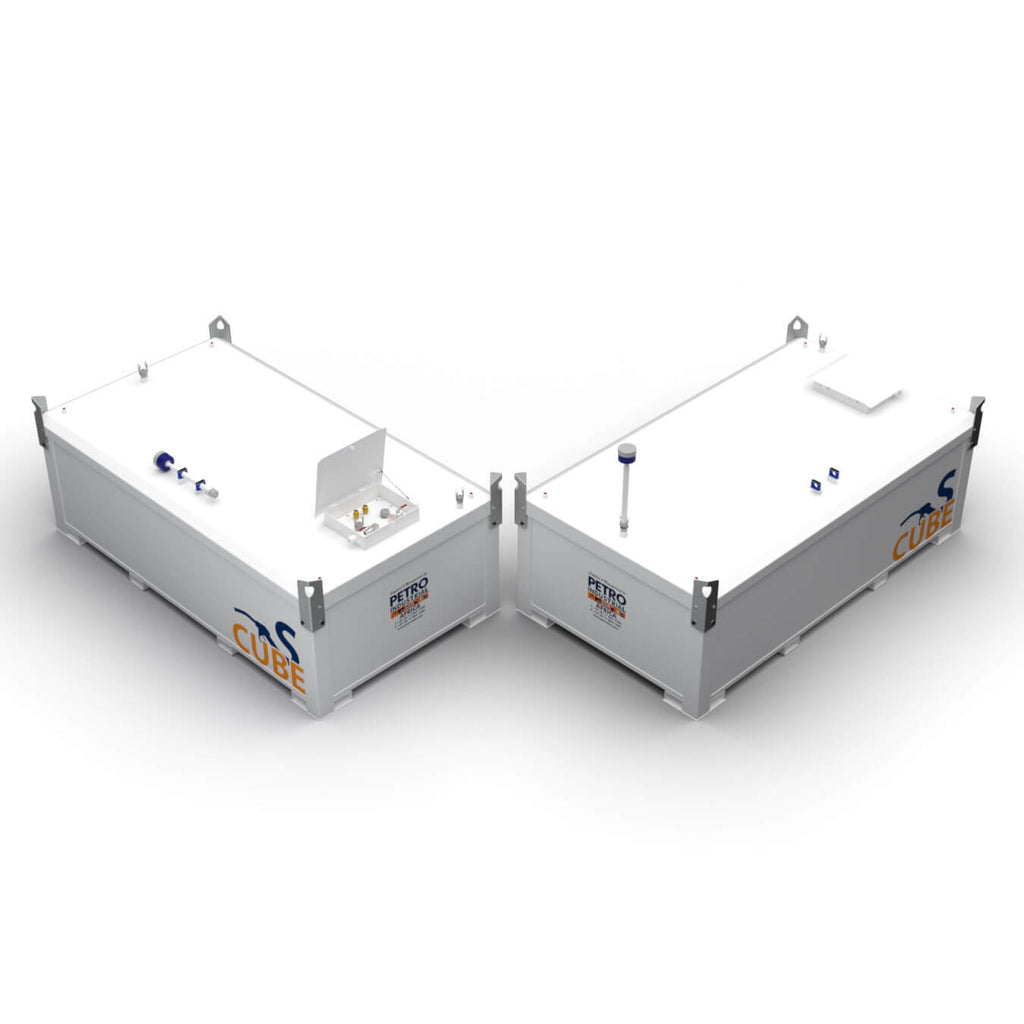

S-Cube 8

8000

4090 x 2380 x 1236

3380,45

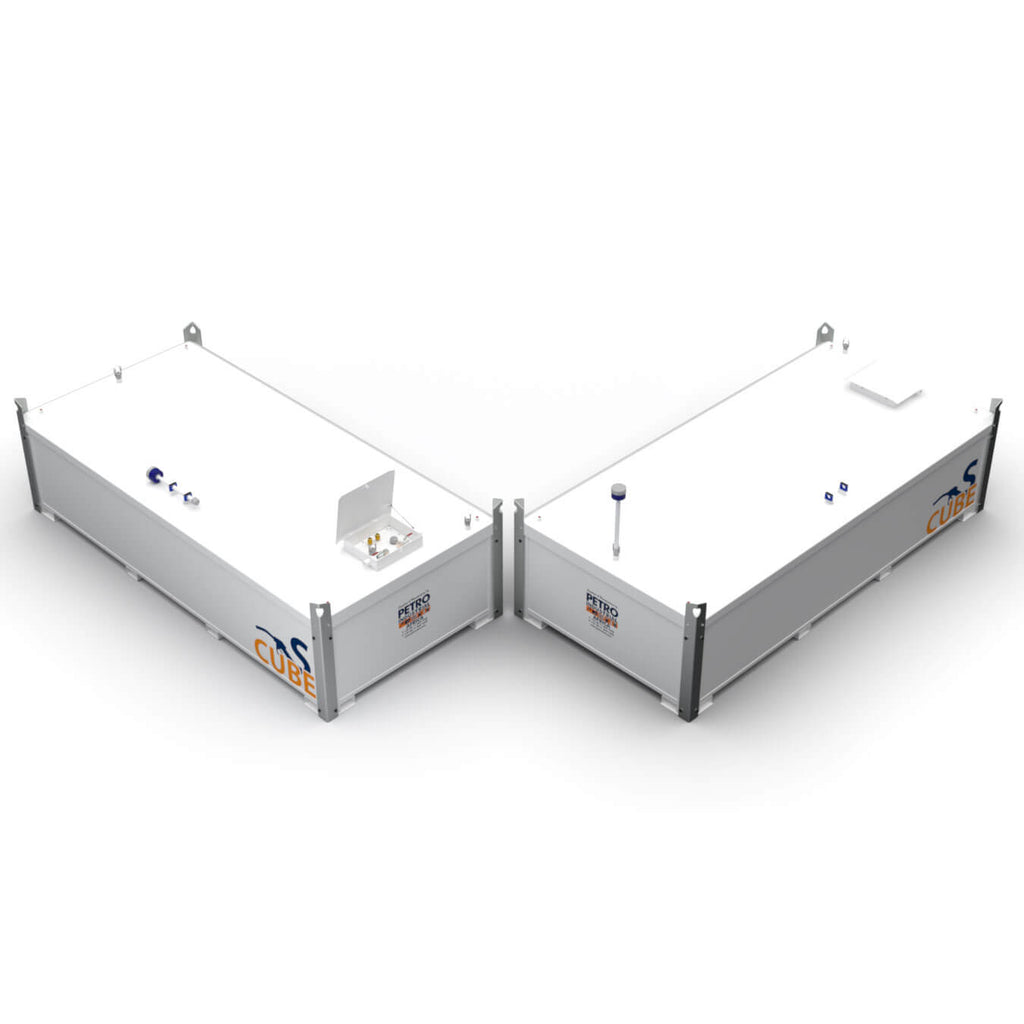

S-Cube 10 10000

5080 x 2380 x 1236

3885,70

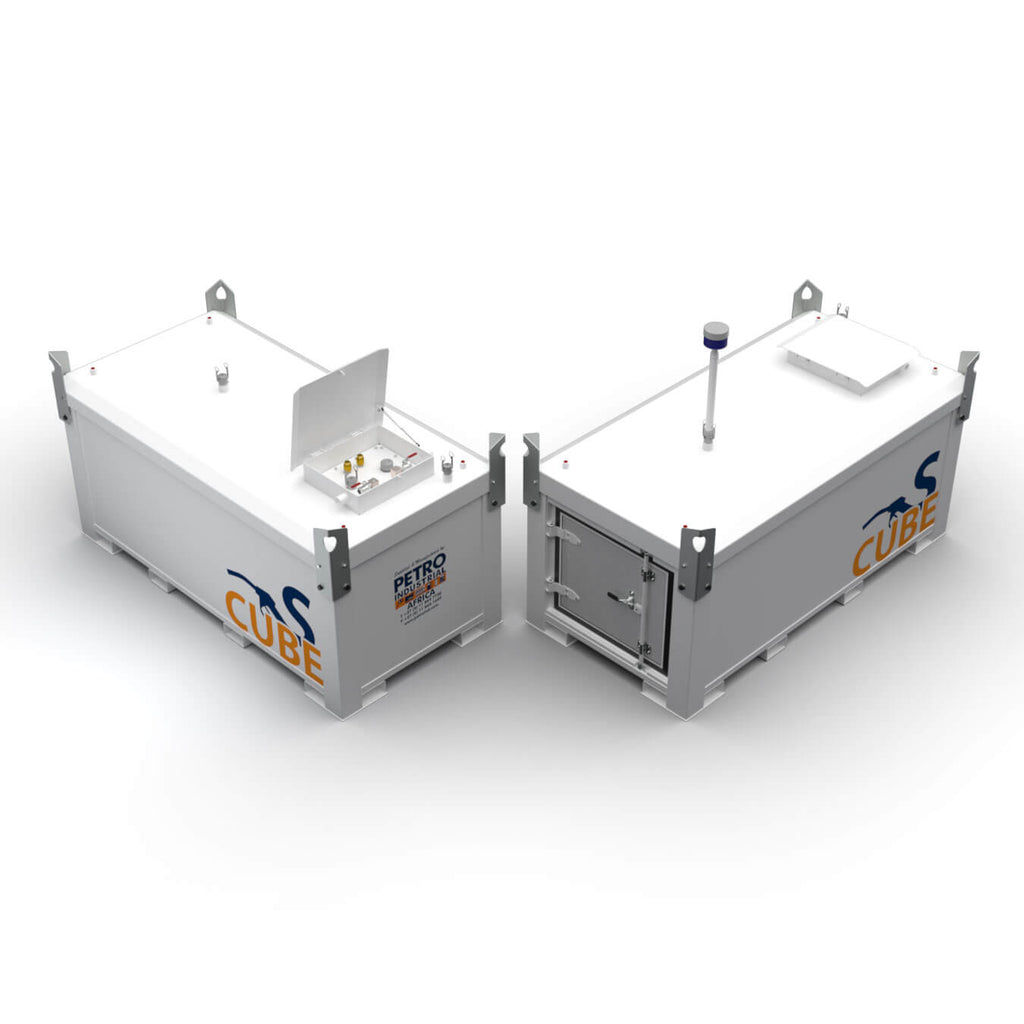

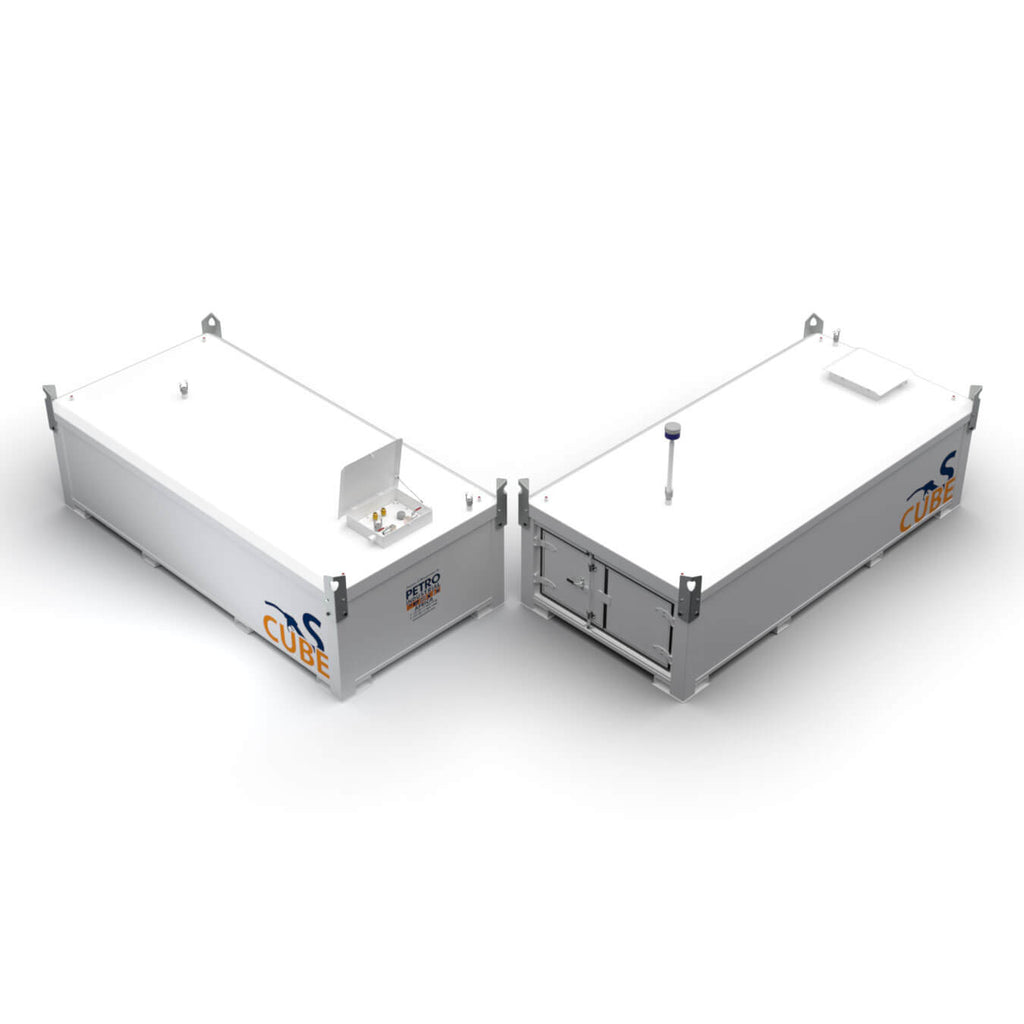

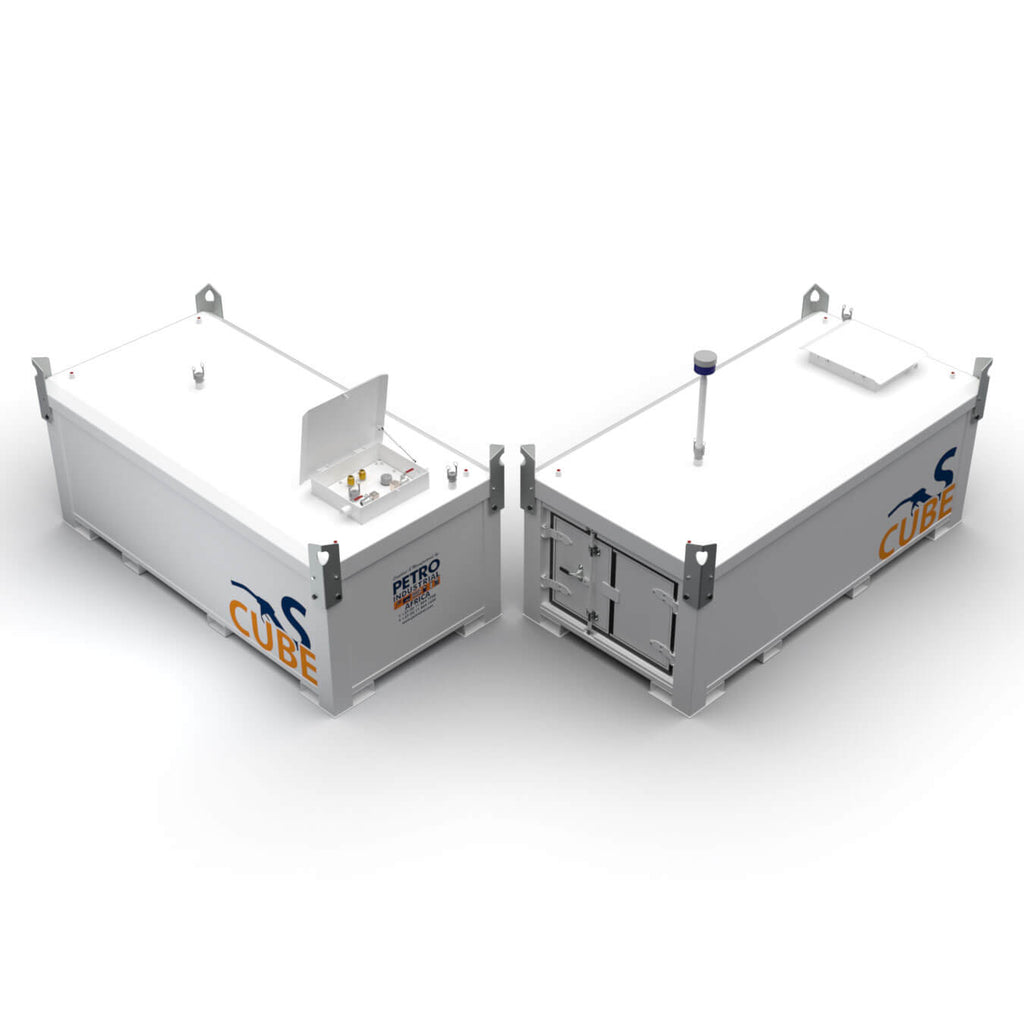

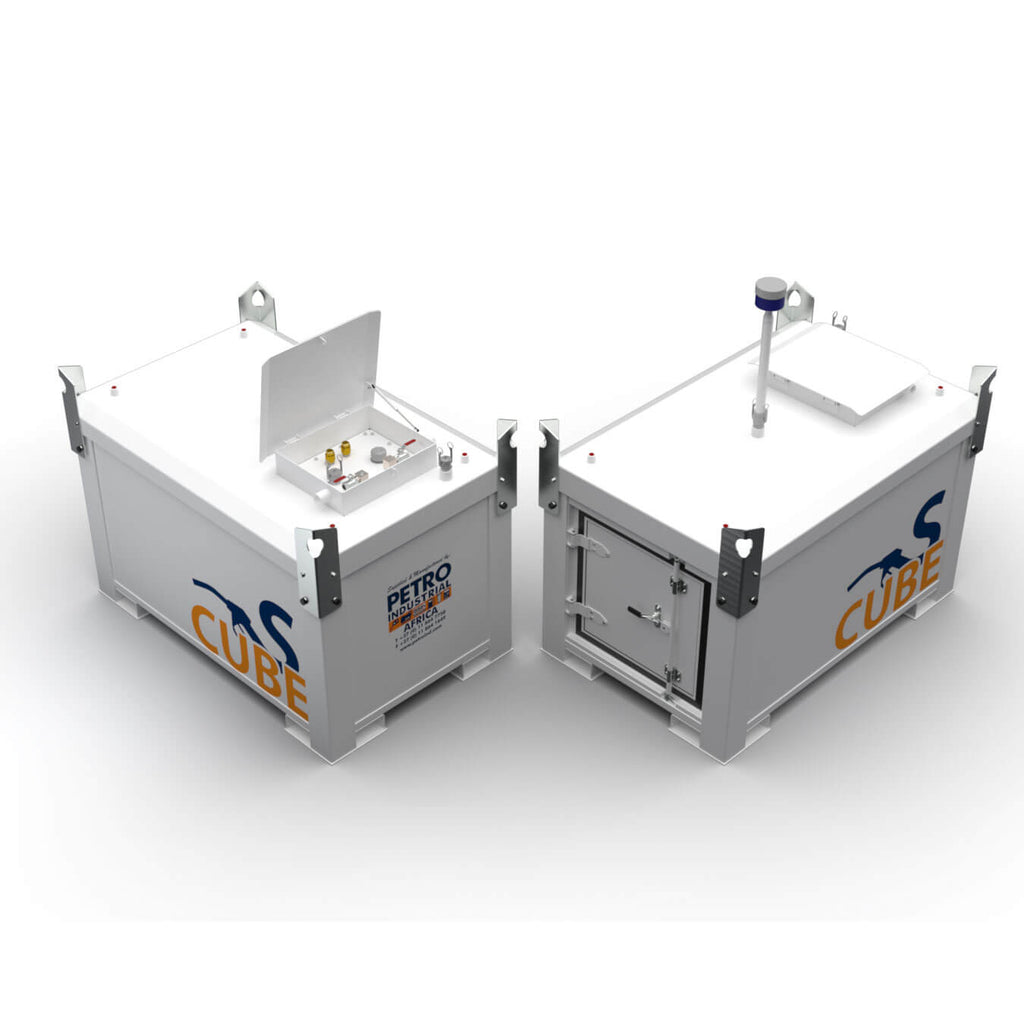

S-Cube PB (with Pump Bay) Tank Overhaul Dimensions

Code

Safe Fill Level (L)

Dimensions (L x W x H) (mm)

Estimated Weight (kg)

S-Cube PB 1

1000

2000 x 1280 x 1236

1358,71

S-Cube PB 2

2000

2760 x 1380 x 1236

1810,68

S-Cube PB 3

3000

3200 x 1580 x 1236

2271,96

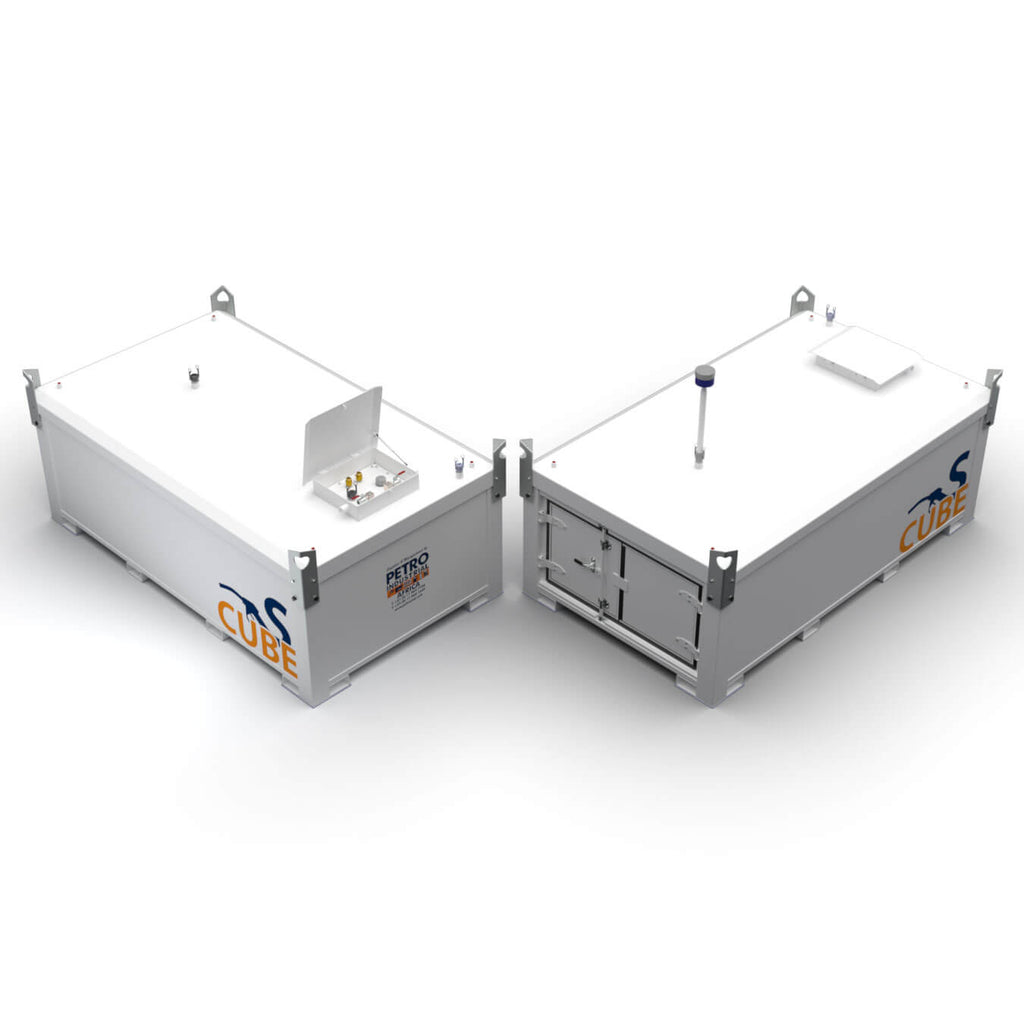

S-Cube PB 4

4000

3420 x 1980 x 1236

2853,35

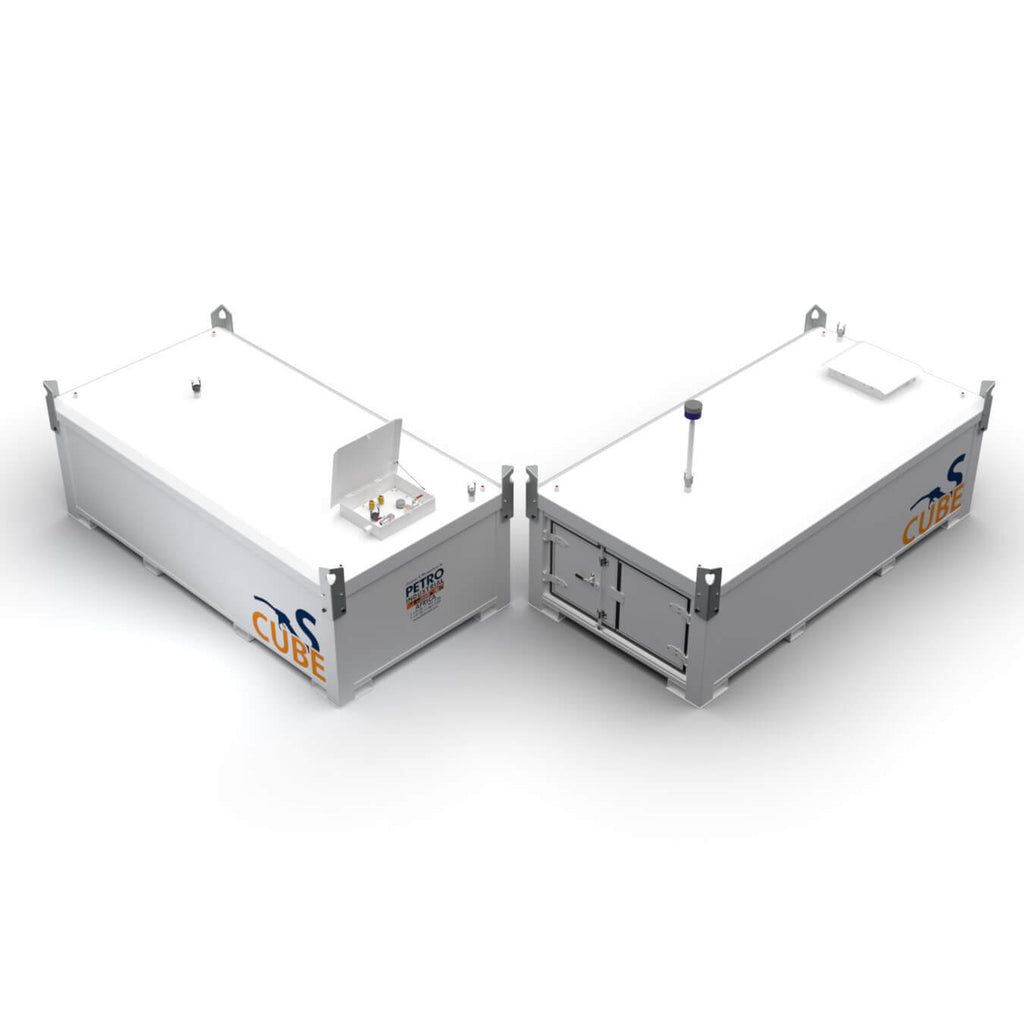

S-Cube PB 5

5000

3900 x 1980 x 1236

3276,66

S-Cube PB 6

6000

4410 x 2080 x 1236

3686,17

S-Cube PB 8

8000

4710 x 2380 x 1236

4225,56

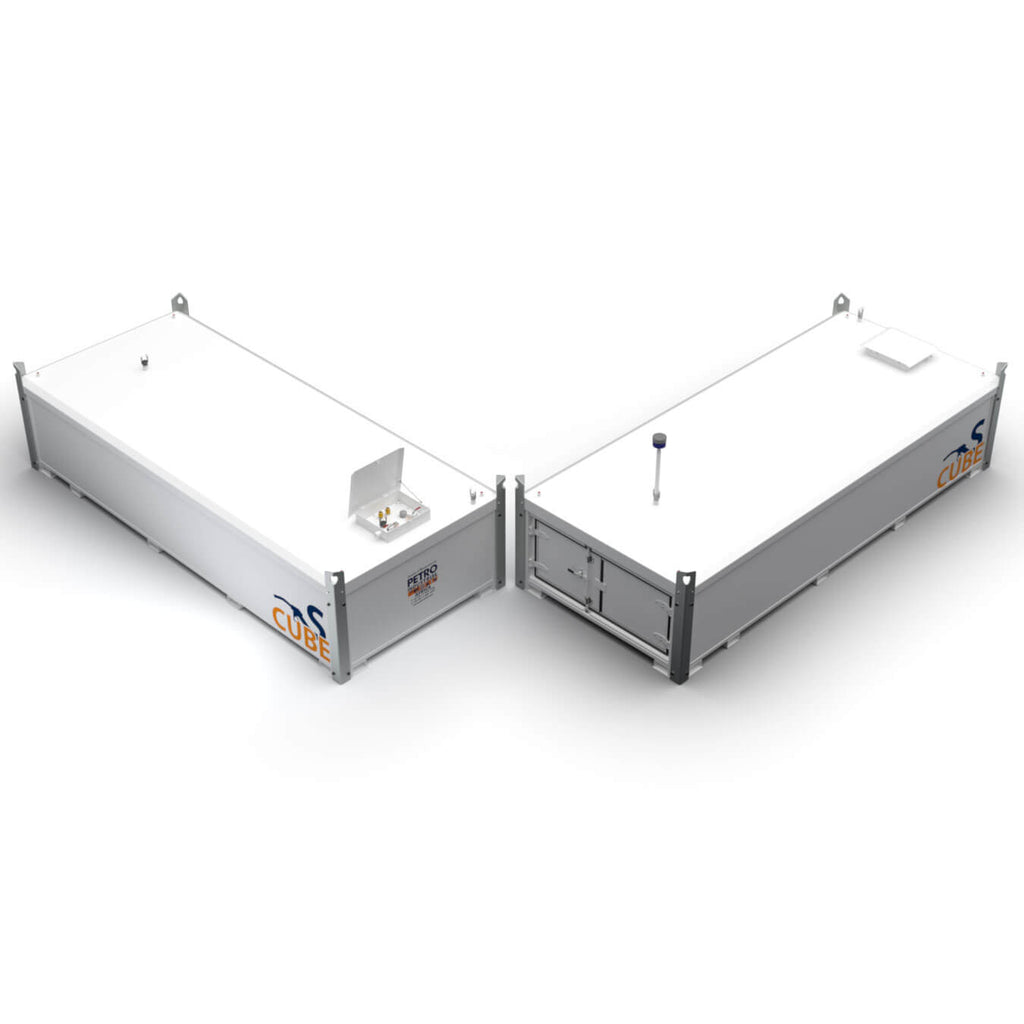

S-Cube PB 10 10000

5700 x 2380 x 1236

4857,12
