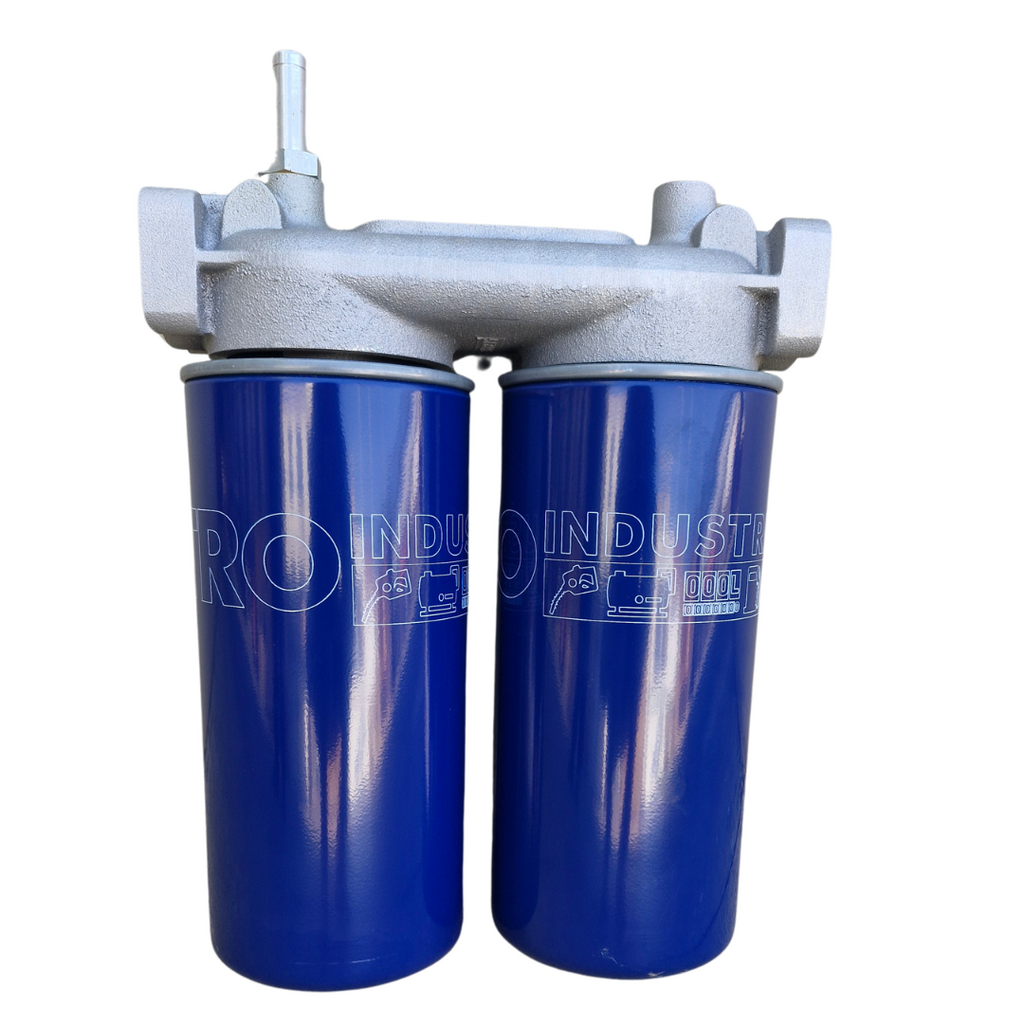

Pi 270 LOW PRESSURE SUCTION FILTER

Pi 270 Low Pressure Suction Filter

High performance filters for modern hydraulic systems.

Nominal pressure 10 bar (140 psi), up to nominal size 315.

Features:

• Provided for pipe installation.
• Modular system.
• Compact design.
• Minimal pressure drop through optimal flow design.
• Visual/electrical/electronic maintenance indicator.
• Threaded connections.
• Quality filters, easy to service.
• Equipped with highly efficient Mic or Sm-x filter elements.
• Beta rated elements according to ISO 16889 multi-pass test.
• Elements with high differential pressure stability and dirt holding capacity.

Design:  in-line filter

Nominal pressure:  10 bar (140 psi)

Test pressure:  13 bar (180 psi)

Temperature range:  -10 ÆC to +120 ÆC (other temperature ranges on request)

Bypass setting

Pressure side:  D p 3.5 bar ± 10%

Suction side:  D p 0.25 bar ± 10%

Filter head material:  GAL

Spin-on cartridge material:  St

Sealing material:  NBR/AL

Maintenance indicator setting:  D p 2.2 bar ± 10%

Indicating range vacuum gauge:  -1 bar to +1.5 bar

Pressure setting vacuum switch:  200 mbar

Type of protection (suction side):  IP 54

Electrical data of maintenance indicator

Maximum voltage:  250 V AC/200 V DC

Maximum current:  1 A

Contact load:  70 W

Type of protection:  IP 65 in inserted and secured status

Contact:  normally open/closed

Cable connection:  M20x1.5
