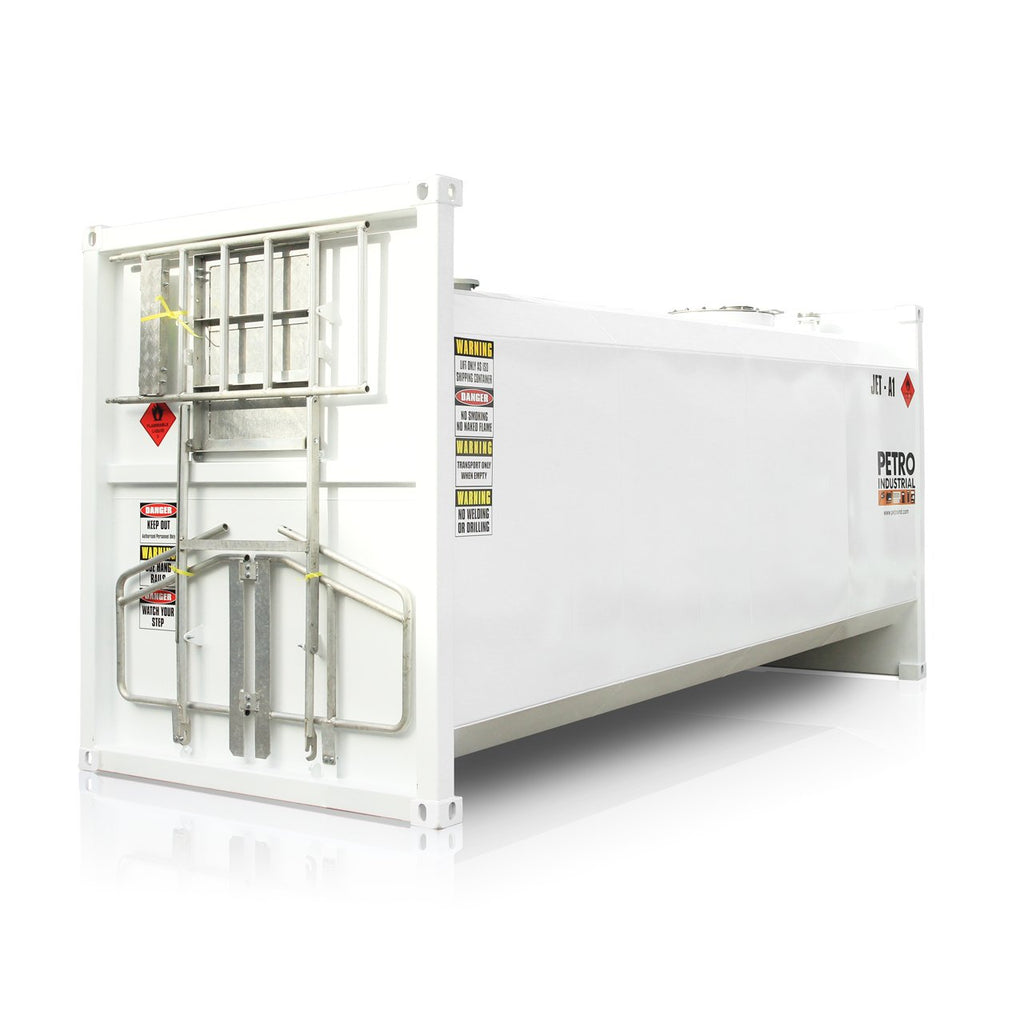

PETRO Aviation Containerised Self Bunded (Double Wall) Tank Range.

Full range of Containerised Self Bunded Tanks (Double Wall) suitable for the storage and dispensing of AVGAS and Jet A1 Fuels.

FEATURES:

  • Self Bunded Tank (double wall) 360° Wrap Design.
  • Suitable for use with Avgas and Jet A-1.
  • 6mm 304 Stainless Steel or Epoxy Lined Carbon Steel Inner Tank & Wetted Parts.
  • 6mm Carbon Steel Outer Tank.
  • CSC Plated as Shipping Container - available in 10ft, 20ft and 40ft configurations.
  • Crane Rated 4 x Lifting Points for safe lifting and moving around site.

SPECIFICATIONS:

  • Painted Brilliant White.
  • Grade 304 Stainless Steel or Epoxy Lined Carbon Steel Inner Tank with bolted manway tank access.
  • Heavy duty 6mm mild steel outer bund.
  • 100mm fall to sump.
  • Anti Syphon Valve.
  • Low point.

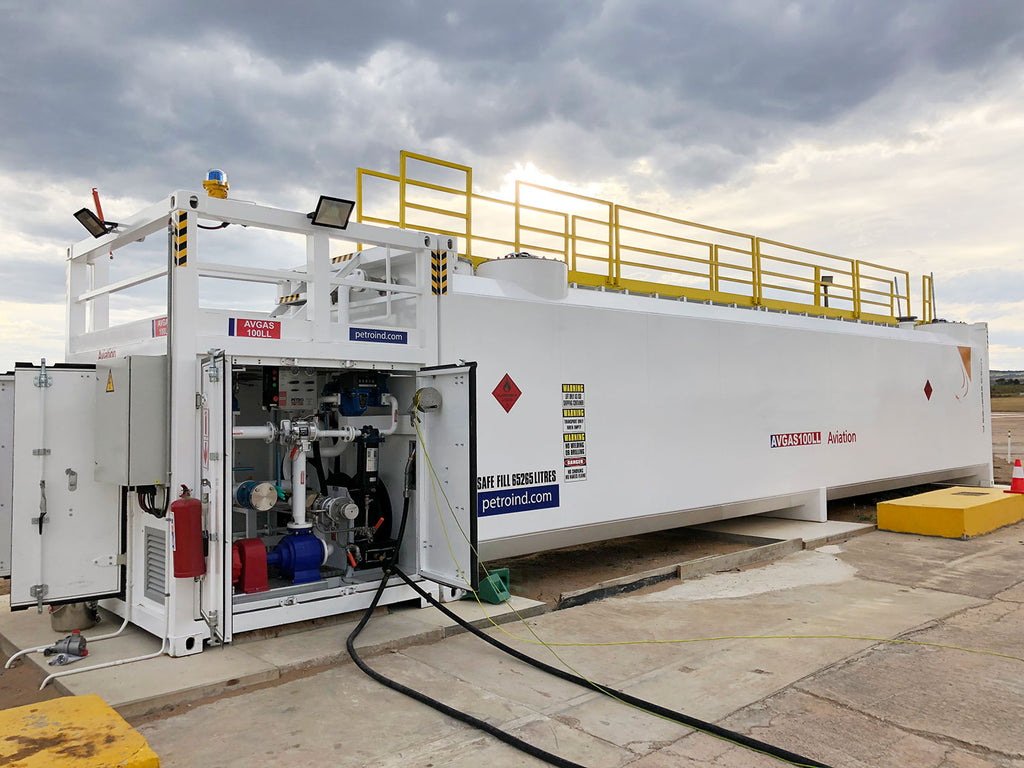

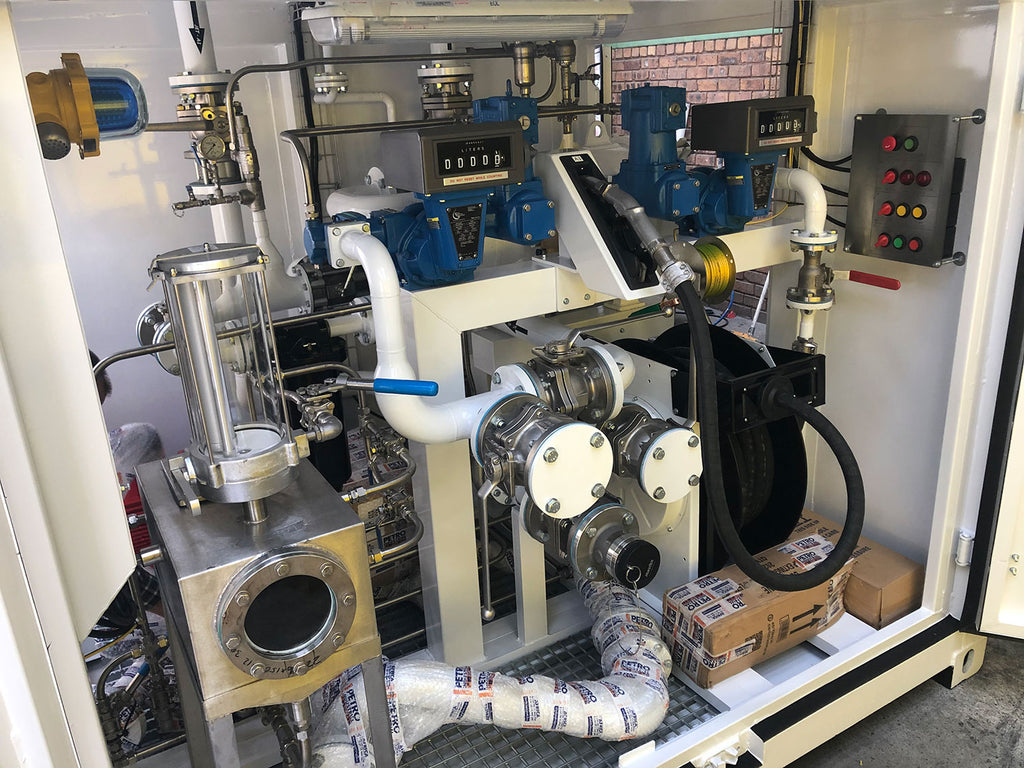

  • Fill point & pump cabinet with lockable container doors.
  • Fill point - DN80 (3”) 304 Stainless Steel, with overfill prevention valve, firesafe isolation valve and non return valve.
  • 25mm stainless steel sump draw line, with sump pump in cabinet for fuel sampling.
  • Sample draw off point, inspection glass and closed loop return to tank.
  • AS1657 designed and approved ladder and tank top access assembly.

PRODUCT RANGE:

Code

Description

Safe Fill Level

PTA10

10 000L Self Bunded Tank

9 000L

PTA25

25 000L Self Bunded Tank

23 200L

PTA28

28 000L Self Bunded Tank

26 400L

PTA33

33 000L Self Bunded Tank

30 000L

PTA55

55 000L Self Bunded Tank

50 000L

PTA87

87 000L Self Bunded Tank

82 300L
