SAMOA PUMP MASTER 80 – 50:1 TAIL GREASE PUMP KIT

50:1 TAIL GREASE PUMP KIT

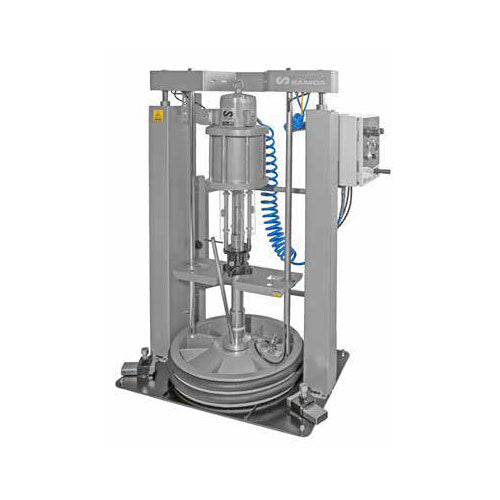

PumpMaster 80 - 50:1 pump system with pneumatic inductor for 185kg drums.

Air operated piston pump specially designed for pumping tail grease in tunnel boring machines.

MAIN FEATURES:

8” air motor diameter with 6” stroke

• Maximum power for efficient material delivery.
• No stall, no ice formation, reliable air motor.

Long life seals

UHMWPE seals provide long life and trouble free operation

Cast Iron pump body

Maximum resistance against high pressure

Dynamic primer pump design

Divorced pump has a primer rod, provides positive priming of the heaviest pump-able materials.

Pump mounted on an air operated power ram.

Contributes to keep pump primed, minimises waste and makes easier replacing empty drum.

Power Ram includes:

• Double seal inductor plate
• On / Off control of the pump
• Up / Down control of the inductor plate
• Two independent air pressure regulators, one for the pump and the other for the inductor plate air cylinders.
• Pump / Inductor independent air pressure gauges
• Automatic empty drum shut off
• Automatic vacuum release when raising the inductor plate
