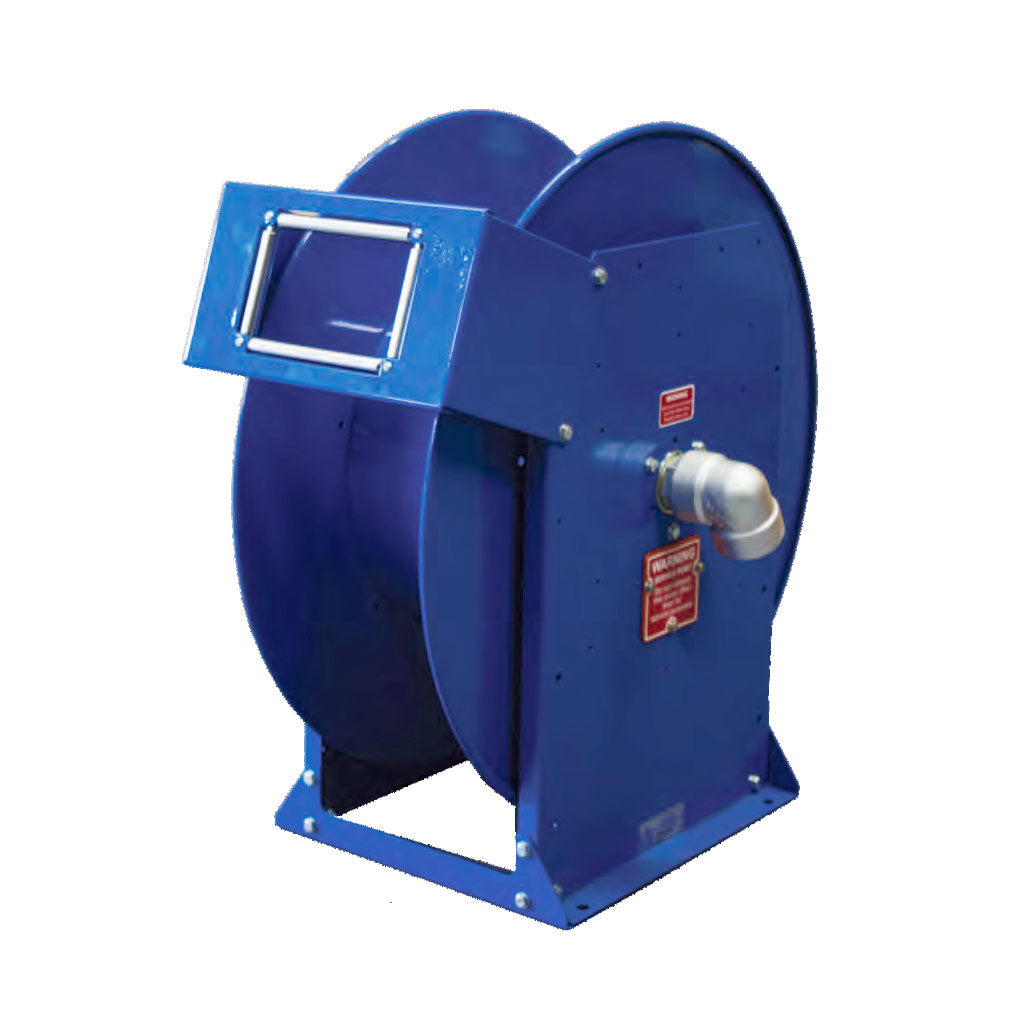

PETRO Hose Reel Range

HOSE REEL RANGE

Manual & Spring Retractable

HW300-30/08
HW400-40/12
GPE-AWL-15/08
NS200-AWL-15/08
NS200-HPG-15/06
NS600-AWL-15/12
NS600-AWL-30/08
NS600-HPG-25/06
NS800-LDF-15/16
NS1000-LDF-25/16
NS1500-LDF-12/20
NS1800-LDF-15/24

Model Identification Table:

Compact Modular Design

• The all bolted, heavy gauge steel components maintain a precision reel assembly with optimum weight to strength ratio.
• The modular steel drum ensures accuracy and high strength.

Wear Resistant Hose Guide Assembly

• The high strength 4 way roller assembly hose guides ensure minimum hose reeling fiction.
• Additional hole positions on the frame side plate accommodate all position variations for the hose guide brackets.

Sealed Main Bearings

• The reel drum rotates between maintenance free deep groove bearing units, assuring smooth reeling at a high operating duty.

Power Spring

• The power spring is manufactured from scale-less blue tempered spring steel.
• The spring is contained in a sealed, serviceable canister, which is factory lubricated.
• The reel is fitted with a reverse rotation clutch to protect the spring.

Durable Epoxy Power Coat Finish

• Before epoxy powder coating, the reel components are steam cleaned and pre-treated in a seven-stage process. Which includes de-greasing and iron phosphate.

High Duty Cycle Inlet Swivel

• The reel is fitted with a high duty cycle, steel swivel BSP ported “full bore for optimum flow” to handle the full range of products, for the specified pressure and flow range.

High Flow Main Shaft Assembly

• The main shaft flows are sized for optimum flow and minimum shock loss.

For more detailed information and the Range, please DOWNLOAD the Catalogue.
