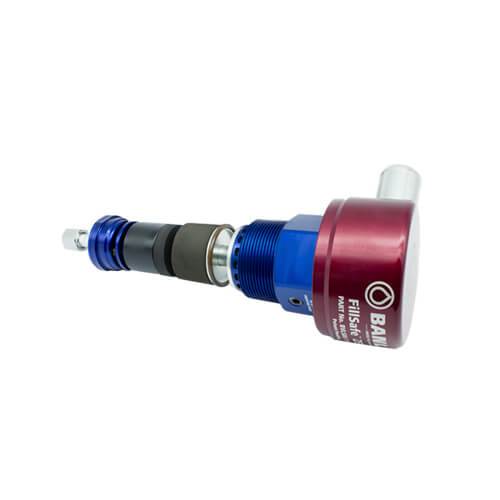

BANLAW FillSafe™ Zero Vented Level Sensor - Overfill Protection

BANLAW FillSafe™ Zero Vented Level Sensor - Overfill Protection

Our mechanical tank overfill protection system enables safe, high-speed diesel refuelling, and is cost-efficient to install on a wide range of vehicles, and stationary tanks.

Product variants are available that fit directly into a 2” shell, refuel up to 1000lpm, include a Dry Break Receiver, or are provided with process connections for in-line deployment. Venting Level Sensors:

• Terminates refuelling or filling at the nominated tank ullage with no pressure build-up in the tank.
• 2” NPT (M) thread.
• Option of either internal or external Pilot Line ports mean the Venting Level Sensor can be deployed with any FillSafe Zero Flow Control Valve (mix-and-match).
• Vents up to 1000lpm (264gpm) of exhaust air when filling is in progress.
• Unique flotation mechanism allows the Dry Break refuelling system to serve as a ‘pressurised tank’ secondary means of tank overfill protection.
• Pressure relief feature ensures no tank damage occurs if pressure shut-off backup system is used. Venting Level Sensor is sold with 16psi (110kPa) or 7psi (49kPa) configuration to support various tank wall thicknesses.
• ‘Anti-spill’ rollover protection feature is highly reliable, and will not allow significant amounts of diesel to escape should the equipment end up on its side, or roll over completely.
• Can be deployed with optional remote mounted filter breather system. Banlaw 3µm (abs.) Ultra Fine Filtered Vent is recommended.

RANGE:
