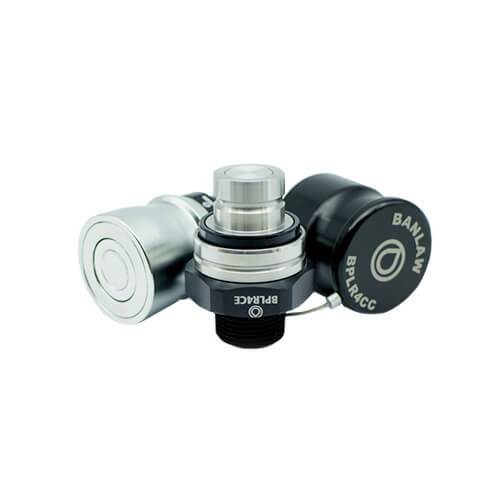

Our Flush Face range of couplings is designed to fill and evacuate a wide range of fluids with maximum efficiency.
They contain a superior ‘ball-lock’ latching system for a stronger lock connection, Dry Break design for reduced spills, and are Flush Faced to minimise the particulate contaminants which make it into the fluid path.
Each set of couplings are colour coded to assist the operator in identifying matched fittings, and only same-coloured nozzles and receivers can connect, eliminating fluid crosscontamination.
Sound engineering design focused on the internal fluid path mean the Banlaw Flush Face Range of couplings have a higher flow capability, and allow for more efficient service intervals.
RANGE:
|
Part Number |
Product Description |
Tech Specs |
Shipping Specs |
Items Included |
|
BPLN4BN |
Nozzle Flush Face Size 04, 3/4” NPTF |
3/4” NPTF |
8 x 6 x 6cm | 0.66kg |
Cap sold separately |
|
BPLN4BN - CT |
Nozzle Flush Face Size 04, 3/4” NPTF, Cold Temp |
3/4” NPTF, CT |
9 x 5 x 5cm | 0.84kg |
|
|
BPLN4BNC |
Nozzle Flush Face Size 04, 3/4” NPTF |
3/4” NPTF |
10 x 6 x 6cm | 0.71kg |
Nozzle inc Cap |
|
BPLN4BNC - CT |
Nozzle Flush Face Size 04, 3/4” NPTF, Cold Temp |
3/4” NPTF, CT |
10 x 6 x 6cm | 0.71kg |
|
|
BPLN4CN |
Nozzle Flush Face Size 04, 1” NPTF |
1” NPTF |
10 x 7 x 3cm | 0.07kg |
Cap sold separately |
|
BPLN4CN - CT |
Nozzle Flush Face Size 04, 1” NPTF, Cold Temp |
1” NPTF, CT |
9 x 5 x 5cm | 0.84kg |
|
|
BPLN4CNC |
Nozzle Flush Face Size 04, 1” NPTF |
1” NPTF |
10 x 6 x 6cm | 0.71kg |
Nozzle inc Cap |
|
BPLN4CNC - CT |
Nozzle Flush Face Size 04, 1” NPTF, Cold Temp |
1” NPTF, CT |
10 x 6 x 6cm | 0.71kg |
|
|
BPLR4BE |
Receiver Flush Face Size 04, 3/4” NPTM |
3/4” NPTM |
10 x 6 x 6cm | 0.49kg |
Receiver and Cap |
|
BPLR4BE - CT |
Receiver Flush Face Size 04, 3/4” NPTM, Cold Temp |
3/4” NPTM, CT |
11 x 6 x 6cm | 0.53kg |
|
|
BPLR4CE |
Receiver Flush Face Size 04, 1” NPTM |
1” NPTM |
10 x 6 x 6cm | 0.49kg |
|
|
BPLR4CE - CT |
Receiver Flush Face Size 04, 1” NPTM, Cold Temp |
1” NPTM |
11 x 6 x 6cm | 0.53kg |
